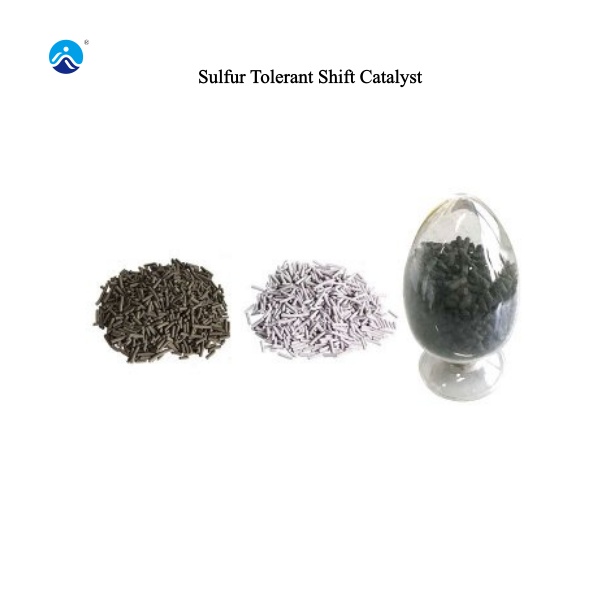

Sulfur Tolerant Shift Catalyst
Hosea Chem® has been supplying Sulfur Tolerant Shift Catalyst with high quality and competitive price for many years, covering most of the European, American, middle east, etc. Send Inquiry
Product Description

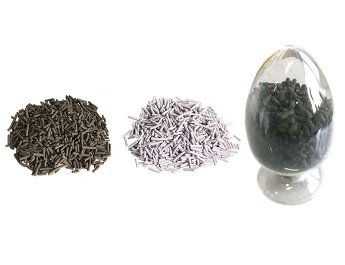

S Series Presulfided Shift Catalyst
Product features and range of applications:
S series presulfurized sulfur-tolerant shift catalyst is a new type of sulfur-tolerant shift catalyst that can be used directly without sulfurization treatment in the reactor of industrial equipment. In addition to having all the performance characteristics of conventional oxidized catalysts, this catalyst also has the advantages of easy catalyst replacement, saving factory start-up time, safety and environmental protection, etc.
Product Details
Physical and chemical properties
CoO (wt%): 1.0 ~ 4.0
MoO3 (wt%): 8.0 ± 1.0
Carrier + additive (wt%): balance
Appearance: black or pink strip or column
Specification (mm): ∅3.5-4.5
Bulk density (kg/l): 0.80-1.05
Pore volume (ml/g): ≥0.25
Specific surface area (m2/g): ≥100
Main conditions of use
Pressure (MPa): ~8.0
Temperature (°C): 190-500
Heat-resistant temperature (°C): 550
Dry gas space velocity (hT): 500-8000
Water-gas ratio: ~1.6

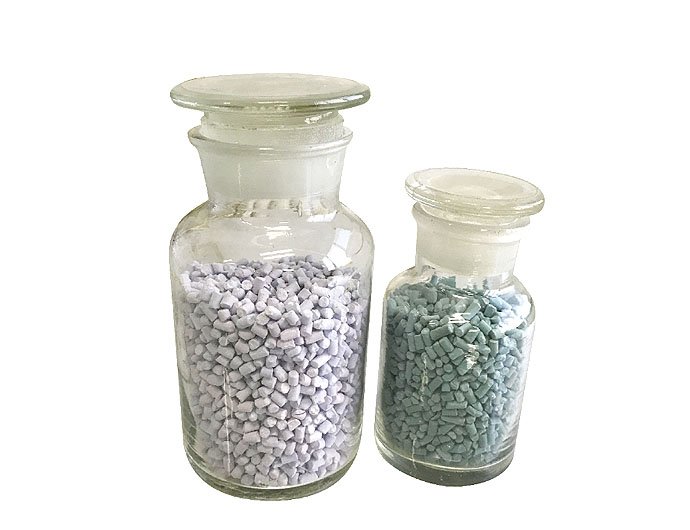

06 Sulfur-Resistant Shift Catalyst
Product features and range of applications:
06 is a new C2 sulfur-resistant shift catalyst suitable for use in isothermal shift reactors. The catalyst contains special anti-hydration and low-temperature activity additives. When used under low temperature, high pressure, high space velocity and high water/gas conditions, it has good low-temperature activity and anti-hydration performance, and can meet the requirements of isothermal shift process for catalyst performance.
Product Details
Physical and chemical properties:
CoO (wt%): 1.8 ±0.2/3.5 ±0.5
MoO3 (wt%): 8.0 ±1.0
Carrier + additive (wt%): balance
Appearance: light green or pink strip or column
Specification (mm): ∅2.5-3.5
Bulk density (kg/l): 0.85-1.05
Pore volume (ml/g): ≥0.25
Specific surface area (m2/g): ≥100
Main operating conditions:
Pressure (MPa): ～8.0
Temperature (°C): 190-400
Heat-resistant temperature (°C): 550
Dry gas space velocity (h-1): 500-8000
Water-gas ratio: ～1.6

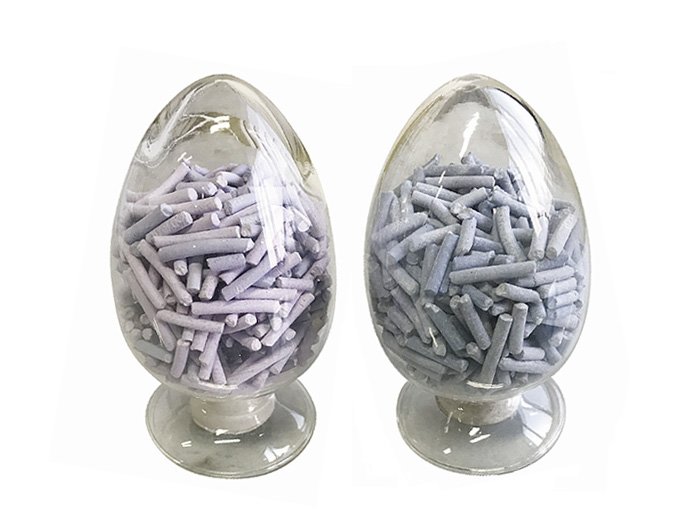

05 sulfur-resistant shift catalyst
Product features and range of applications:
05 catalyst is developed on the basis of 04 catalyst. This catalyst is added with special additives and is suitable for use in high CO feed gas low water/gas shift process. It has the function of inhibiting methanation side reactions. When performing high CO concentration feed gas shift reaction, it can exert excellent catalyst activity and inhibit the occurrence of methanation side reactions.
Product Details
Physical properties
Chemical composition (%)
CoO (m/m): 1.8±0.2
MoO3 (m/m): 8.0±1.0
Carrier + additive (m/m): balance
Physical properties
Appearance: green or pink strip shape
Specifications (mm): ∅3.5 ~4.5~25
Bulk density (kg/l): 0.70 ~1.05
Strength (N/cm): ≥120
Pore volume (ml/g): ≥0.25
Specific surface area (m2/g): ≥100
Main use conditions:
Pressure (MPa): ～5.0
Temperature (°C): 190-500
Heat resistance temperature (°C): 550
Dry gas space velocity (It1): 500-10000
Water/gas: -1.0

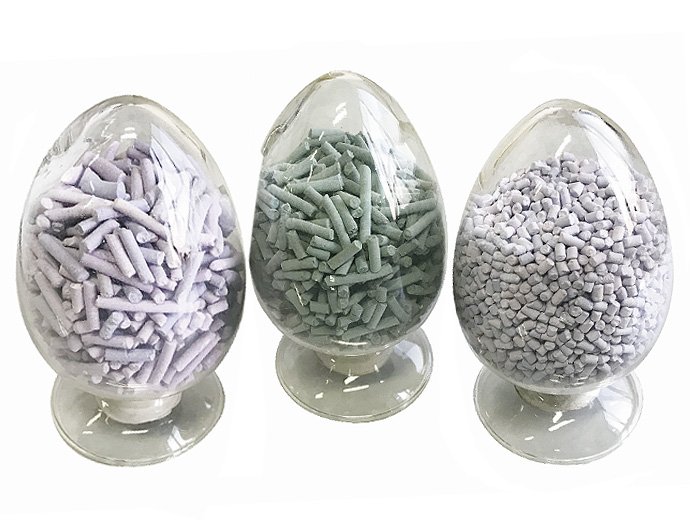

04 Sulfur-Resistant Shift Catalyst
Product features and range of applications:
04 is a new type of CO sulfur-resistant shift catalyst with magnesium aluminum spinel as carrier and containing multi-component composite additives. It is suitable for use in the shift process of producing ammonia synthesis gas, methanol synthesis gas, city gas, coal-to-oil or coal-to-olefins from coal as raw material. If the pressure is high, the water vapor partial pressure is large and the operating temperature is low, that is, when it is close to the dew point temperature or used under harsh conditions of high temperature and low sulfur, compared with similar catalysts, QDB-04 can better show its superior catalytic performance.
Product Details
Main use conditions:
Temperature (℃): 190~500
Activation temperature (℃): 180
Heat resistance temperature (℃): 500
Pressure (Mpa): Normal pressure~5.0
Dry gas space velocity (h-1): 500~8000
Water/gas (mol/mol): ~1.4
Sulfur content (ppm): Low change>80
Medium change>150
Physical properties:
Chemical composition%:
CoO (M/M): 1.8±0.2
MoO3 (M/M): 8.0±1.0
Carrier + additive: balance
Physical properties:
Appearance: green or pink strip
Specification (mm): Ф3.5~4.5×5~25
Bulk density (kg/l): 0.93~1.0
Strength (N/cm): >130
Pore volume (ml/g): ≥0.25
Specific surface area (m2/g): ≥100
04 has the following outstanding features:
High conversion activity and activity stability
The special active carrier additive is selected. Due to the synergistic effect of the active carrier, the additive and the active component, the conversion activity of the catalyst is improved, especially the conversion activity and activity stability of the catalyst under high temperature and low sulfur conditions.
Strong ability to hydrogenolyze and hydrolyze organic sulfur
The addition of composite alkaline materials enhances the surface alkalinity of the catalyst and improves the conversion activity of the catalyst to organic sulfur, especially under low reaction temperature conditions. At the same time, due to the improvement of organic sulfur conversion activity, when the H2S in the raw gas is low, it can better maintain its own sulfurization form, thereby improving the deoxidation performance of the catalyst.
Good hydration resistance
The addition of special hydration resistance additives can significantly reduce the adsorption activity of L acid on Al2O3 particles, thereby reducing the ability of the Al2O3 component in the carrier to hydrate, and improve the hydration resistance of the catalyst, so that the catalyst does not hydrate or phase change when used under harsh conditions with high pressure, and has high hydration resistance and structural stability.
Excellent carbon burning regeneration performance
Advanced carrier preparation technology is adopted and inorganic pore-forming agents are added. On the premise of ensuring high crushing strength, the pore structure of the catalyst is adjusted and the macroporous powder rate is increased, which is conducive to the rapid escape of CO2 and other gases generated during the carbon burning regeneration process, protecting itself from or less damage, thereby improving the carbon burning regeneration performance of the catalyst.

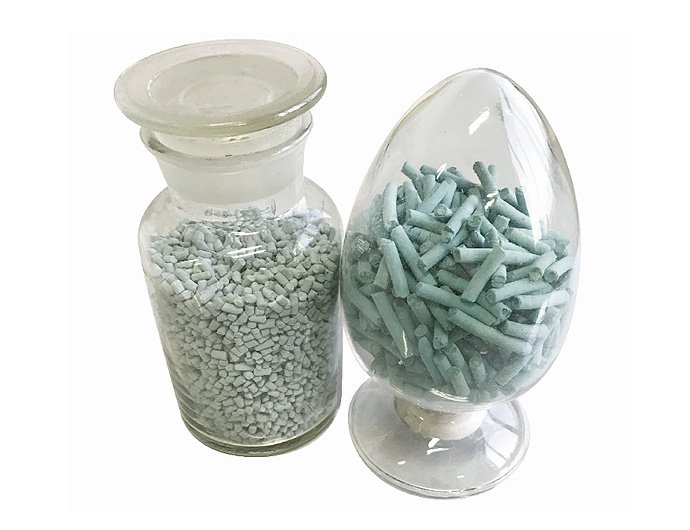

03 Sulfur-Resistant Shift Catalyst
Product features and range of applications:
03 is a new type of CO sulfur-resistant shift catalyst with magnesium aluminum spinel as carrier, prepared by special method and containing multi-component composite additives. It is suitable for the process of producing shift process gas and city gas from coal or residual oil as raw materials, especially for the process of producing hydrogen, ammonia synthesis gas, city gas and carbonyl synthesis gas from coal or residual oil as raw materials by high-medium pressure gasification.
03 catalyst does not contain alkali metal additives, so the activation temperature is higher and the low-temperature activity is worse than QDB-04. However, due to the high content of active components, the special preparation method and the active stability additives, the outstanding advantage of QDB-03 catalyst is that it has good activity and structural stability when used under high pressure, high space velocity and high water/gas conditions.
Product Details
Physical properties:
Chemical composition%:
CoO (M/M): 3.8±0.3
MoO3 (M/M): 8.0±1.0
Carrier + additive: balance
Physical properties:
Appearance: blue-green or pink strips
Specifications (mm): Ф3.5~4.5×5~25
Bulk density (kg/l): 0.70~0.85
Strength (N/cm): >130
Pore volume (ml/g): ≥0.30
Specific surface area (m2/g): ≥80
Main use conditions:
Temperature (℃): 190~500
Pressure (Mpa): normal pressure~5.0
Dry gas space velocity (h-1): 500~8000
Water/gas (mol/mol): ~1.4

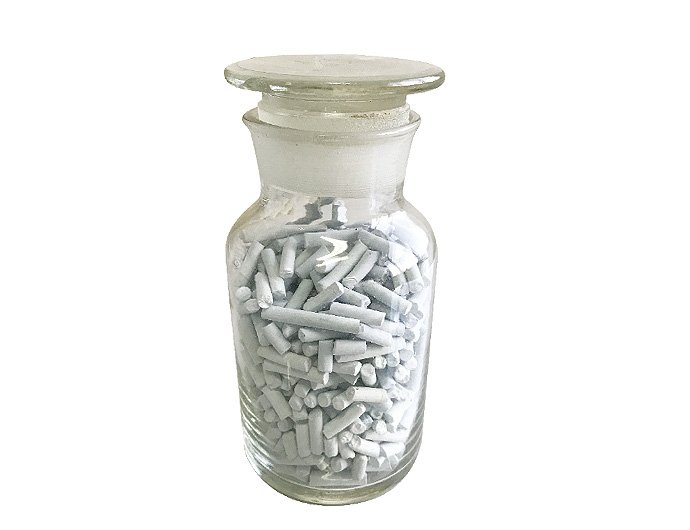

02 sulfur-resistant shift catalyst
Product features and range of applications:
02 is a new type of sulfur-resistant shift catalyst with dual functions of adsorption and shift. It has the characteristics of large pore volume, high strength, good physical and structural stability, etc. It can replace the main catalyst on the top of the catalyst bed or in the pre-shift furnace. It can not only effectively adsorb or remove harmful impurities or poisons such as tar, dust and arsenic in the process gas, but also protect the main catalyst from poisoning and extend its service life. At the same time, due to its suitable catalytic activity, 02 can reduce the amount of the main catalyst and improve the economic benefits of the catalyst users.
Product Details
Physical properties:
Chemical composition%:
CoO (M/M): 0.9±0.1
MoO3 (M/M): 6.0±1.0
Physical properties:
Appearance: green or pink strip or sphere
Specifications (mm): Ф3.5~4.5×5~25
Bulk density (kg/l): 0.70~0.85
Strength (N/cm): >130
Pore volume (ml/g): ≥0.35
Specific surface area (m2/g): ≥100
Main use conditions:
Temperature (℃): 190~500
Heat resistance temperature (℃): 500
Using pressure (Mpa): normal pressure~5.0
Dry gas air velocity (h-1): 500~4000
Water/gas (mol/mol): ~1.4

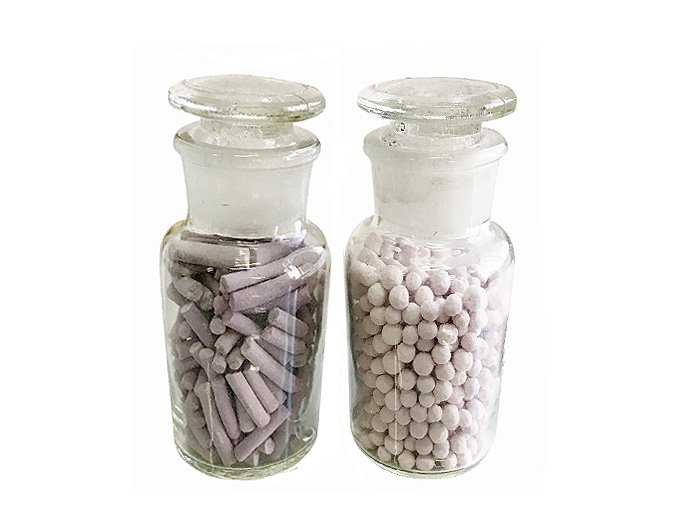

01 Sulfur-Resistant Shift Catalyst
Product features and range of applications:
01 is a new type of CO sulfur-tolerant shift catalyst with magnesium aluminum spinel as carrier and special active additives. It is suitable for the process of producing shift process gas and city gas with coal or residual oil as raw materials, especially for the process of "full low shift", "medium low shift" and "medium low low" in atmospheric pressure fixed bed gas production.
Product Details
01 is a patented product developed by our company. Compared with traditional alumina carrier catalysts, 01 has the following outstanding features:
Adopting advanced catalyst preparation technology, the strength and anti-powdering ability of the catalyst are improved. It can effectively avoid the shortcomings such as increased bed resistance, catalyst agglomeration, difficulty in unloading and even affecting the normal operation of industrial production caused by the pulverization of the catalyst itself, extend the continuous start-up time of the device, increase the output of the device, and improve the economic benefits of the enterprise.
Adding special active components to activate the carrier improves the activity and activity stability of the catalyst and extends the service life of the catalyst.
Adding new additives improves the low-temperature activity and low water-gas ratio resistance of the catalyst, reduces the operating temperature of the entire reaction system, and saves energy.
Main use conditions:
Pressure (Mpa): ~5.0
Temperature (℃): 190~500
Activation temperature (℃): 180
Heat resistance temperature (℃): 500
Dry gas space velocity (h-1): 500~4000
Water/gas (mol/mol): ~1.4
Sulfur content (ppm): low change > 80
Medium change > 150
Physical properties:
Chemical composition, %:
CoO (M/M): 1.2±0.2
MoO3 (M/M): 7.0±1.0
Carrier + additive: balance
Physical properties:
Appearance: light green or pink strip or sphere
Specifications (mm): Ф3.5~4.5×5~25
Bulk density (kg/l): 0.72~0.95
Strength (N/cm): >120
Pore volume (ml/g): 0.25~0.30
Specific surface area (m2/g): ≥110
