Product Description
Claus Tail Gas Hydrogenation Catalyst
Product features and range of applications:
Claus Tail Gas Hydrogenation Catalyst is a Claus tail gas hydrogenation catalyst with alumina as a carrier and cobalt and aluminum as active components.
It has the characteristics of uniform distribution of active components, high low-temperature hydrogenation activity and good organic sulfur hydrolysis activity.
Compared with conventional hydrogenation catalysts, the reactor inlet temperature can be reduced from about 280°C to 220-230°C, which can save the gas consumption of the tail gas incinerator and has significant energy saving and consumption reduction effects.
Product Details
Physical and chemical properties

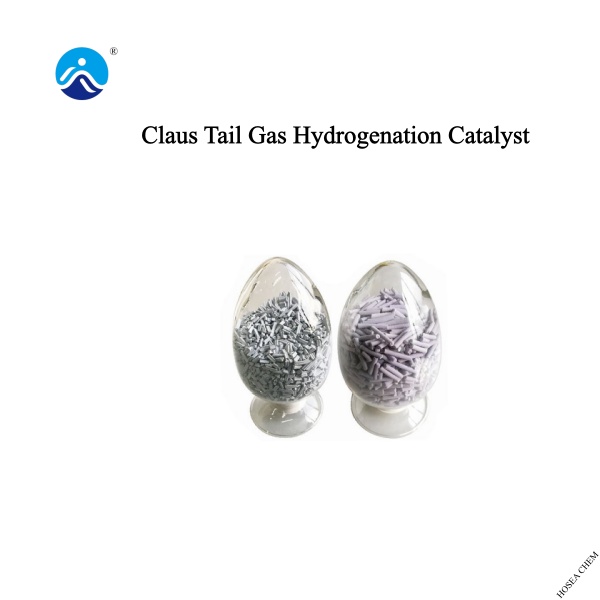

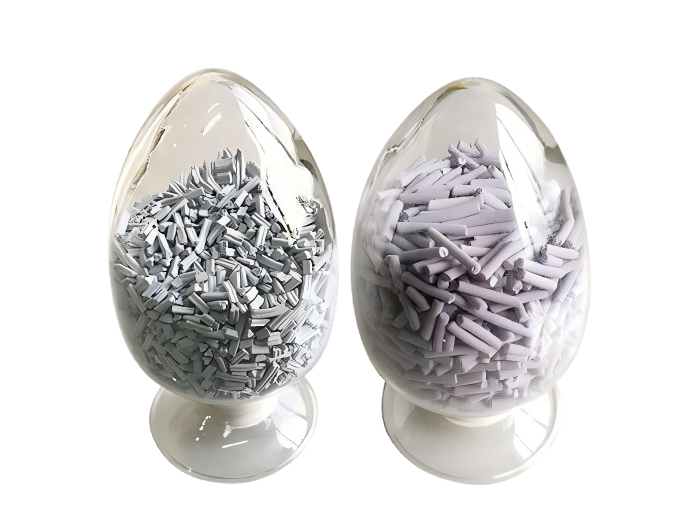

Appearance: blue-gray clover or strip
CoO (wt%): 1.8±0.2
MoO3 (wt%): 12±0.5
Specifications (mm): Φ2.0~4.0
Bulk density (kg/l): 0.65~0.75
Crushing strength (N/cm): ≥120
Specific surface area (m2/g): ≥200
Specific pore volume (ml/g): ≥0.35
Main conditions of use
Pressure (kPa): ～150
Temperature (°C): 220～280
Dry gas space velocity (It1): 200～1500
