CPVC Compound
Hosea Chem® has been supplying CPVC Compound (Chlorinated polyvinyl chloride Compound) with high quality and competitive price for many years, covering most of the European, American, middle east, etc. Send Inquiry
Product Description
Chlorinated polyvinyl chloride (CPVC) compound is a functional material made primarily of chlorinated polyvinyl chloride resin, compounded with other additives and processed. It is available in powder and granule forms.
1. Grade Introduction: Based on different product performance and application areas, CPVC compound is divided into 9 grades, with technical specifications shown in the table.
HOSEA CHEM has long provided a stable supply of 9 grades of chlorinated polyvinyl chloride compound to meet user needs in pipes, fittings, sheets, and other fields. In addition, customized products can be designed to meet special requirements.
1.1 CPVC COMPOUND-H5204
Data Sheet:
Appearance: Granules
Specific Gravity : 1.46-1.50 g/cm3
Volatiles ≤ : 0.3 wt %
Vicat softening Temp. ≥ : 94 ℃
Tensile Strength ≥ : 48 MPa
Tensile Modulus of Elasticity ≥ : 2460 MPa
Elongation ≥ : 25 %
Impact Strength (Izod) ≥ : 9 KJ/m2
Dynamic thermal stabilization time≥ : 25 min
Characteristic: Excellent thermal stability and processing performance, High thermal deformation temperature and mechanical strength, High cost performance product.
Application: Cold/hot water fitting,valves. Industrial fitting,valves.

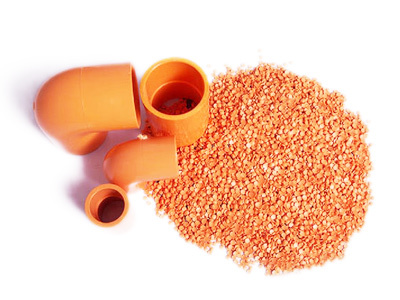

1.2 CPVC COMPOUND-H5209
Data Sheet:
Appearance: Granules
Specific Gravity : 1.46-1.50 g/cm3
Volatiles ≤ : 0.3 wt %
Vicat softening Temp. ≥ : 99 ℃
Tensile Strength ≥ : 50 MPa
Tensile Modulus of Elasticity ≥ : 2480 MPa
Elongation ≥ : 25 %
Impact Strength (Izod) ≥ : 11 KJ/m2
Dynamic thermal stabilization time≥ : 25 min
Characteristic: Excellent thermal stability and processing performance, High thermal deformation temperature and mechanical strength, Excellent impact resistance.
Application: Cold/hot water fitting,valves. Industrial fitting,valves.

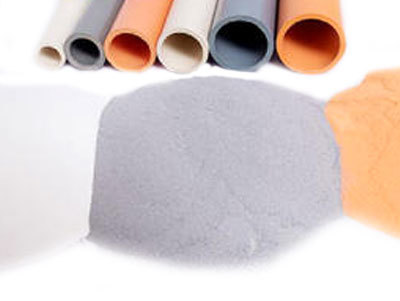

1.3 CPVC COMPOUND-H5122-O
Data Sheet:
Appearance: Powder
Specific Gravity : 1.47-1.49 g/cm3
Performance density: 0.60-0.62 g/cm3
Volatiles ≤ : 0.3 wt %
Vicat softening Temp. ≥ : 112 ℃
Tensile Strength ≥ : 52 MPa
Tensile Modulus of Elasticity ≥ : 2488 MPa
Elongation ≥ : 32 %
Impact Strength (Izod) ≥ : 20 KJ/m2
Dynamic thermal stabilization time≥ : 25 min
Characteristic: Excellent thermal stability and processing performance, high thermal deformation temperature and mechanical strength, excellent impact resistance at room temperature and low temperature, good fire resistance , being a common brand in the field of flame retardant.
Application: Preparation of water pipeline in fire sprinkler system.
1.4 CPVC COMPOUND-H5107
Data Sheet:
Appearance: Powder
Specific Gravity : 1.46-1.50 g/cm3
Appearance density: 0.60-0.64 g/cm3
Volatiles ≤ : 0.3 wt %
Vicat softening Temp. ≥ : 107 ℃
Tensile Strength ≥ : 50 MPa
Tensile Modulus of Elasticity ≥ : 2440 MPa
Elongation ≥ : 30 %
Impact Strength (Izod) ≥ : 17 KJ/m2
Dynamic thermal stabilization time≥ : 25 min
Characteristic: Excellent thermal stability and processing performance, with excellent room and low temperature and good impact modifier characteristic. Its properties is better than PVC.
Application: Hot and cold water pressure pipe,industrial pressure pipes and Non-pressure pipe, buried cable sleeve.

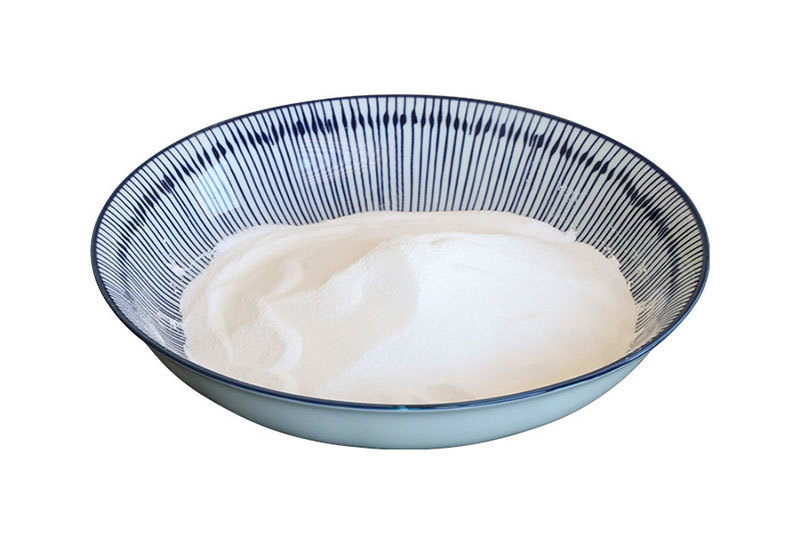

1.5 CPVC COMPOUND-H5117
Data Sheet:
Appearance: Powder
Specific Gravity : 1.46-1.50 g/cm3
Appearance density: 0.60-0.64 g/cm3
Volatiles ≤ : 0.3 wt %
Vicat softening Temp. ≥ : 107 ℃
Tensile Strength ≥ : 50 MPa
Tensile Modulus of Elasticity ≥ : 2440 MPa
Elongation ≥ : 30 %
Impact Strength (Izod) ≥ : 17 KJ/m2
Dynamic thermal stabilization time≥ : 25 min
Characteristic: Excellent thermal stability and processing performance, with excellent room and low temperature and good impact modifier characteristic. Its properties is better than PVC.
Application: Hot and cold water pressure pipe,industrial pressure pipes and Non-pressure pipe, buried cable sleeve.

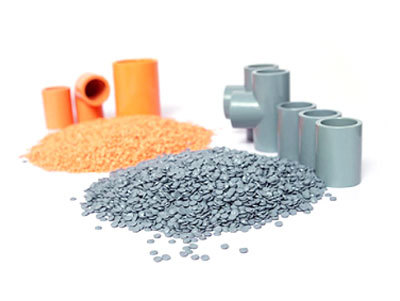

1.6 CPVC COMPOUND-H5122
Data Sheet:
Appearance: Powder
Specific Gravity : 1.46-1.50 g/cm3
Appearance density: 0.60-0.64 g/cm3
Volatiles ≤ : 0.3 wt %
Vicat softening Temp. ≥ : 112 ℃
Tensile Strength ≥ : 51 MPa
Tensile Modulus of Elasticity ≥ : 2480 MPa
Elongation ≥ : 30 %
Impact Strength (Izod) ≥ : 18 KJ/m2
Dynamic thermal stabilization time≥ : 25 min
Characteristic: Excellent thermal stability and processing performance, high thermal deformation temperature and mechanical strength, with excellent room and low temperature and good impact modifier characteristic. It is commonly used in extrusion processing.
Application: Hot and cold water pressure pipe,industrial pressure pipes and Non-pressure pipe.

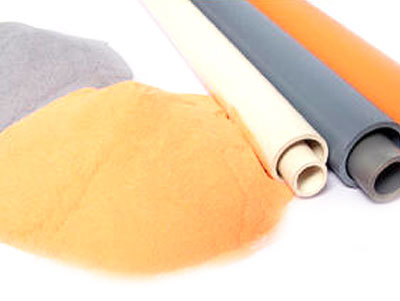

1.7 CPVC COMPOUND-H5125
Data Sheet:
Appearance: Powder
Specific Gravity : 1.46-1.50 g/cm3
Appearance density: 0.60-0.64 g/cm3
Volatiles ≤ : 0.3 wt %
Vicat softening Temp. ≥ : 115 ℃
Tensile Strength ≥ : 52 MPa
Tensile Modulus of Elasticity ≥ : 2500 MPa
Elongation ≥ : 30 %
Impact Strength (Izod) ≥ : 22 KJ/m2
Dynamic thermal stabilization time≥ : 25 min
Characteristic: Excellent thermal stability and processing performance, high thermal deformation temperature and mechanical strength, with excellent room and low temperature and good impact modifier characteristic. It is commonly used in extrusion processing.
Application: Hot and cold water pressure pipe,industrial pressure pipes and Non-pressure pipe.
1.8 CPVC COMPOUND-H5212-O
Data Sheet:
Appearance: Granules
Specific Gravity : 1.47-1.49 g/cm3
Appearance density: 0.60-0.62 g/cm3
Volatiles ≤ : 0.3 wt %
Vicat softening Temp. ≥ : 102 ℃
Tensile Strength ≥ : 50 MPa
Tensile Modulus of Elasticity ≥ : 2488 MPa
Elongation ≥ : 30 %
Impact Strength (Izod) ≥ : 14 KJ/m2
Dynamic thermal stabilization time≥ : 25 min
Characteristic: This brand is the injection type in the field of flame retardant,with Excellent thermal stability and processing performance, high thermal deformation temperature and mechanical strength, excellent impact resistance at room temperature and low temperature, good fire resistance.
Application: Used as fittings and valves in fire sprinkler system.

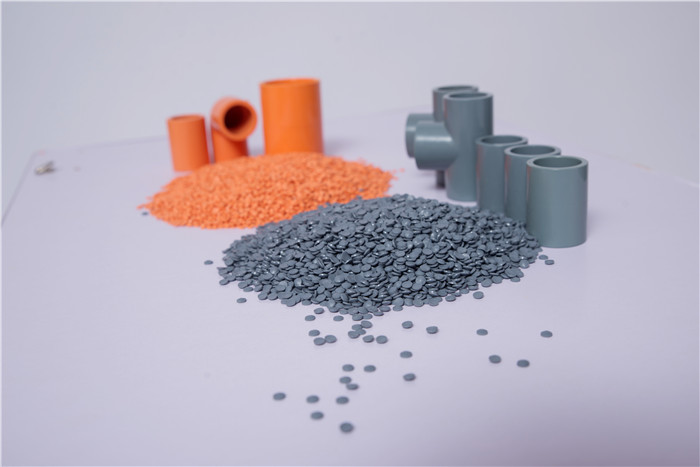

1.9 CPVC COMPOUND-H5214
Data Sheet:
Appearance: Granules
Specific Gravity : 1.46-1.50 g/cm3
Volatiles ≤ : 0.3 wt %
Vicat softening Temp. ≥ : 104 ℃
Tensile Strength ≥ : 51 MPa
Tensile Modulus of Elasticity ≥ : 2500 MPa
Elongation ≥ : 25 %
Impact Strength (Izod) ≥ : 13 KJ/m2
Dynamic thermal stabilization time≥ : 25 min
Characteristic: Excellent thermal stability and processing performance,High thermal deformation temperature and mechanical strength, Excellent impact resistance,common brand for injection.
Application: Cold/hot water fitting,valves,plate. Industrial fitting,valves.
2. Performance and Applications:
In addition to the technical characteristics of chlorinated polyvinyl chloride resin (CPVC) such as heat resistance, corrosion resistance, aging resistance, flame retardancy, and good mechanical properties, CPVC compound also has the following application characteristics.
Application Characteristics:
▶ Product series, wide selection;
▶ Easy to use, no formulation required, can be directly processed into finished products;
▶ Supplied in granules and powders, highly adaptable to equipment;
▶ Various colors available;
▶ Good processing stability, safe and convenient to use.
Main Uses:
♢ Pipes
CPVC compound can be directly molded using single-screw or twin-screw extruders to obtain cold/hot water pipes, corrosion-resistant industrial pipes, and sprinkler pipes for fire protection systems of various specifications. Heat resistance, corrosion resistance, flame retardancy, and mechanical properties meet different application requirements. Smooth inner wall, high flow rate.
♢ Fittings and Other Custom-Shaped Parts
CPVC compound can be used to inject fittings of different diameters, connecting easily to cold/hot water pipes, industrial pipes, and fire sprinkler pipes, with high connection strength. It also provides high heat resistance, is not easily deformed, and has a long service life when used for injecting other custom-shaped parts.
♢ Power Transmission Conduit
CPVC blends can be directly used to process buried high-voltage power cable conduits, offering superior heat resistance, flame retardancy, and insulation compared to traditional PVC. They are widely used in urban power grid upgrades.
♢ Building Materials
CPVC blends have high strength and modulus, and good impact resistance. They are used to manufacture various building door and window profiles, flame-retardant flooring, etc.
♢ Roofing and Wall Panels
CPVC blends have good weather resistance and come in various colors. They are used for roofing panels and exterior wall protection materials, offering good thermal insulation, resistance to aging, and are aesthetically pleasing and durable.
♢ Manufacturing heat-resistant sheets for electrical and electronic applications and other custom-shaped parts and components.
3. Packaging:
Small packages use kraft paper and polypropylene woven composite bags, each with a net weight of 25kg;
Large packages use multi-layer polypropylene composite woven bags, each with a net weight of 650kg;
Other suitable packaging methods can be used in special circumstances as agreed upon by the supplier and the buyer.
4. Storage and Transportation: This product is not a hazardous material.
It should be stored in a dry, well-ventilated warehouse. Small packages should be stacked no more than 7 layers high, and large packages no more than 2 layers high, protected from direct sunlight and moisture. Transportation must be carried out in clean, covered vehicles to prevent exposure to sunlight, rain, and heat.
