1-Hydroxy Ethylidene-1,1-Diphosphonic Acid
Hosea Chem® has been supplying 1-Hydroxy Ethylidene-1,1-Diphosphonic Acid (Cas 2809-21-4) with high quality and competitive price for many years, covering most of the European, American, middle east, etc. Send Inquiry
Product Description
1-Hydroxy Ethylidene-1,1-Diphosphonic Acid
1-Hydroxy Ethylidene-1,1-Diphosphonic Acid is an organophosphoric acid corrosion inhibitor. It can chelate with Fe, Cu, and Zn ions to form stable chelating compounds.It can dissolve the oxidized materials on these metals’ surfaces. 1-Hydroxy Ethylidene-1,1-Diphosphonic Acid shows excellent scale and corrosion inhibition effects under temperature 250℃. 1-Hydroxy Ethylidene-1,1-Diphosphonic Acid has good chemical stability under high pH value, hard to be hydrolyzed, and hard to be decomposed under ordinary light and heat conditions. Its acid/alkali and chlorine oxidation tolerance are better than that of other organophosphoric acids (salt). 1-Hydroxy Ethylidene-1,1-Diphosphonic Acid can react with metal ions in water system to form hexa-element chelating complex, with calcium ion in particular. Therefore, HEDP has good antiscale and visible threshold effects. When built together with other water treatment chemicals, it shows good synergistic effects.
The solid state of HEDP is crystal powder, suitable for usage in winter and freezing districts. Because of its high purity, it can be used as cleaning agent in electronic fields and as additives in daily chemicals.
Specification of Product

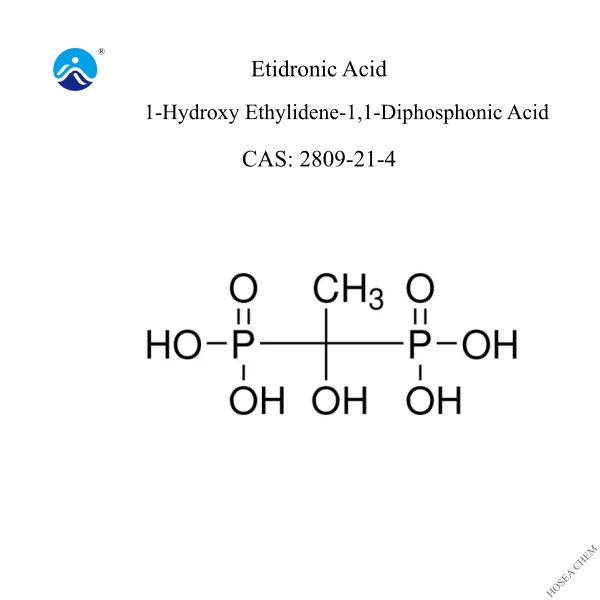

Product Name : 1-Hydroxy Ethylidene-1,1-Diphosphonic Acid
Etidronic Acid
HEDP
Molecular Formula: C2H8O7P2
Molecular weight: 206.02
Cas No.: 2809-21-4
1-Hydroxy Ethylidene-1,1-Diphosphonic Acid Quality Standard:
Appearance Clear, Colorless to pale yellow aqueous solution White crystal powder
Active content (HEDP)% 60.0 min 90.0 min
Active content (HEDP·H2O)% -- 98.0 min
Phosphorous acid (as PO33-)% 1.0 max 0.8 max
Phosphoric acid (as PO43- )% 0.6 max 0.5 max
Chloride (as Cl-)% 0.01 max 0.01 max
pH (1% water solution) 2.0 max 2.0 max
Density (20℃), g/cm3 1.40 min --
Fe, mg/L 10.0 max 5.0 max
Colour APHA (Hazen) 10.0 max --
Ca sequestration (mg CaCO3/g) 500.0 min --
Packing
1-Hydroxy Ethylidene-1,1-Diphosphonic Acid liquid: Normally In 250kg net Plastic Drum, IBC drum can also be used as required
HEDP solid: 25kg inner liner polyethylene (PE) bag, outer plastic woven bag, or confirmed by clients.
Storage
Storage for ten months in room shady and dry place.
Acidity, Avoid contact with eye and skin, once contacted, flush with water.
1-Hydroxy Ethylidene-1,1-Diphosphonic Acid Applications
1-Hydroxy Ethylidene-1,1-Diphosphonic Acid is used as scale and corrosion inhibition in circulating cool water system, oil field and low-pressure boilers in fields such as electric power, chemical industry, metallurgy, fertilizer, etc..
In light woven industry, 1-Hydroxy Ethylidene-1,1-Diphosphonic Acid is used as detergent for metal and nonmetal.
In dyeing industry, 1-Hydroxy Ethylidene-1,1-Diphosphonic Acid is used as peroxide stabilizer and dye-fixing agent.
In non-cyanide electroplating, HEDP is used as chelating agent.
The dosage of 1-10mg/L is preferred as scale inhibitor, 10-50mg/L as corrosion inhibitor, and 1000-2000mg/L as detergent. Usually, HEDP is used together with polycarboxylic acid.
